$1,589.99 – $1,789.99
Couldn't load pickup availability

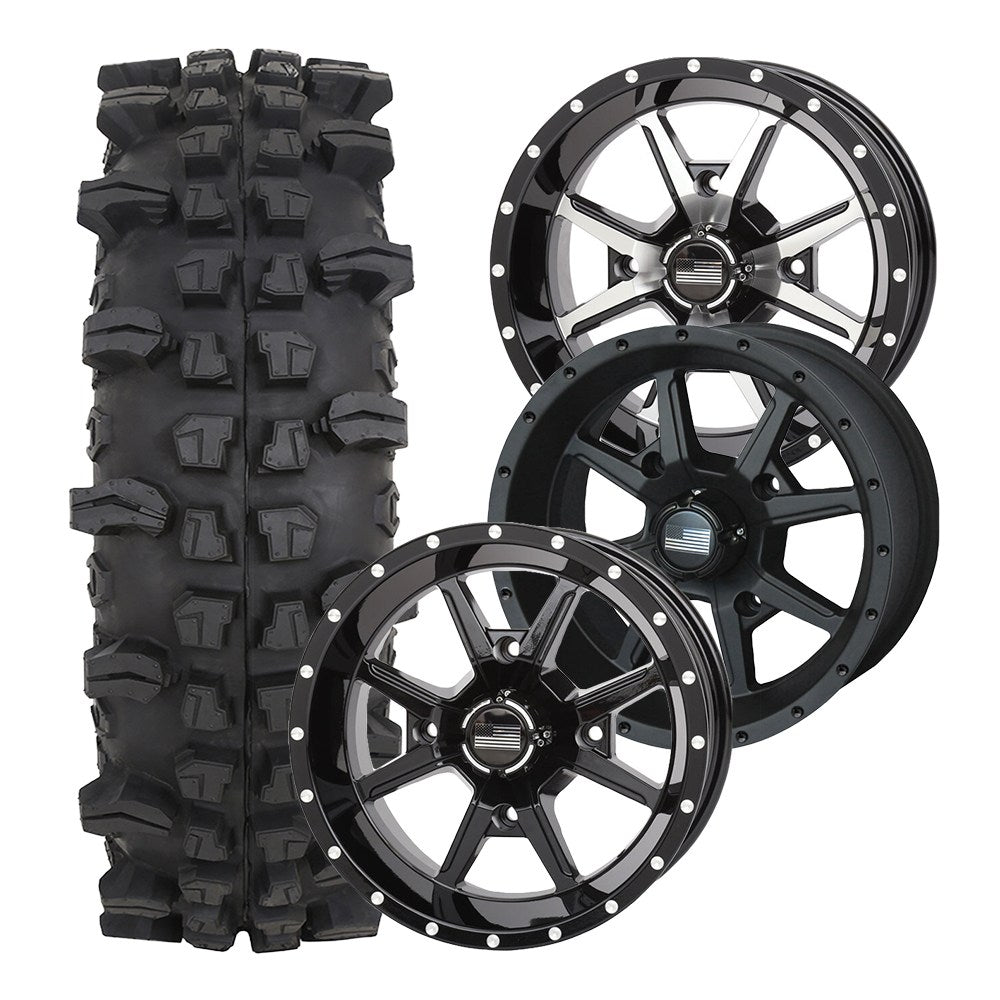

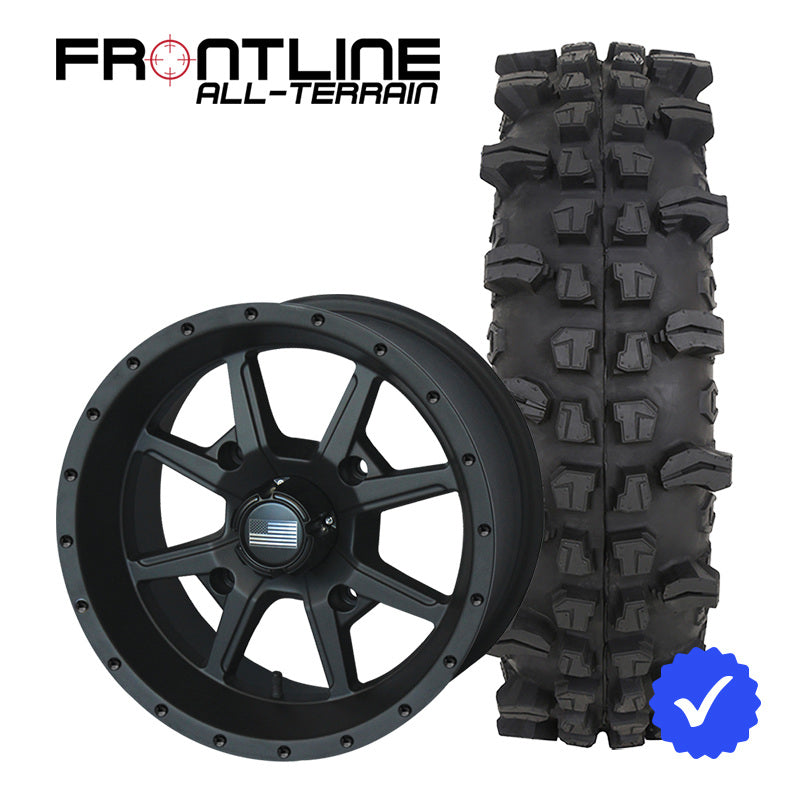

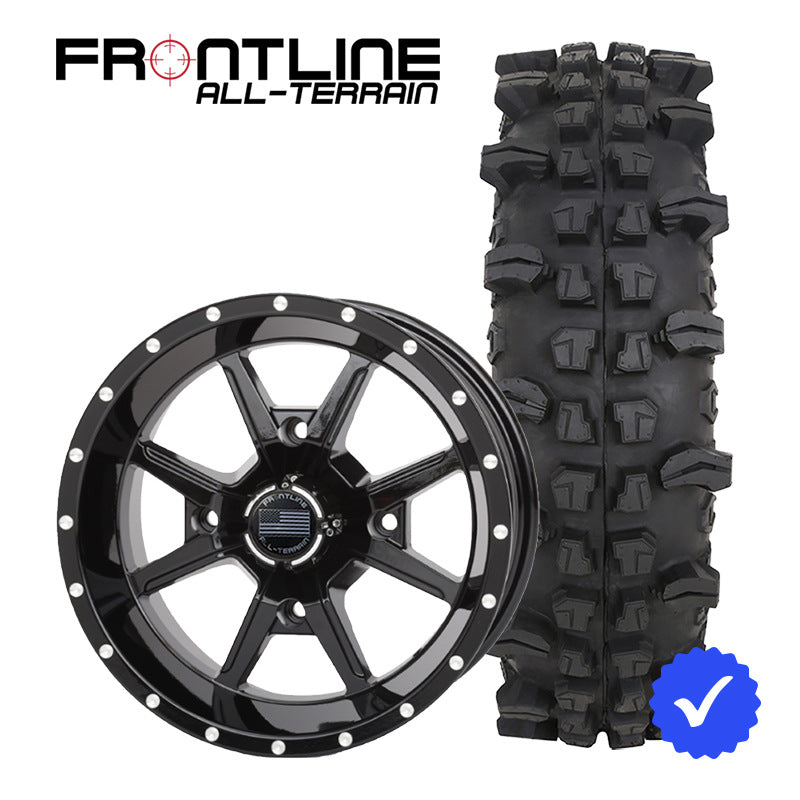

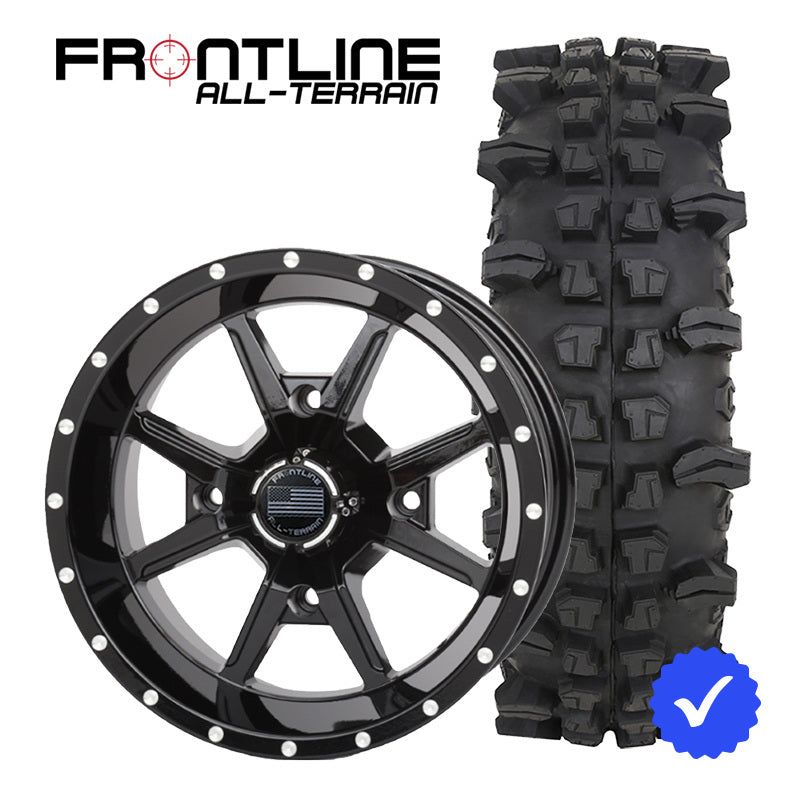

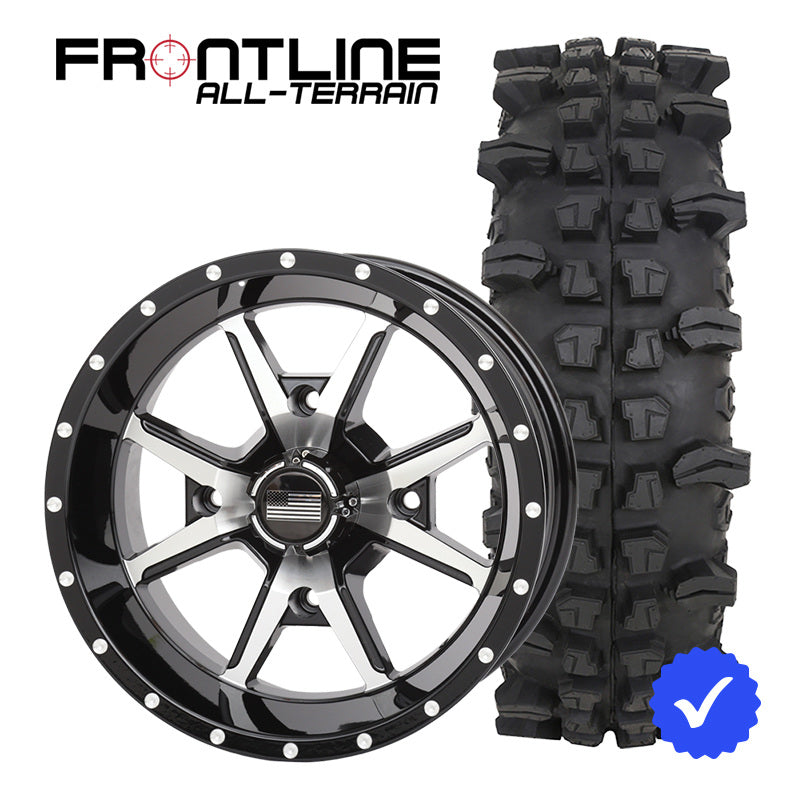

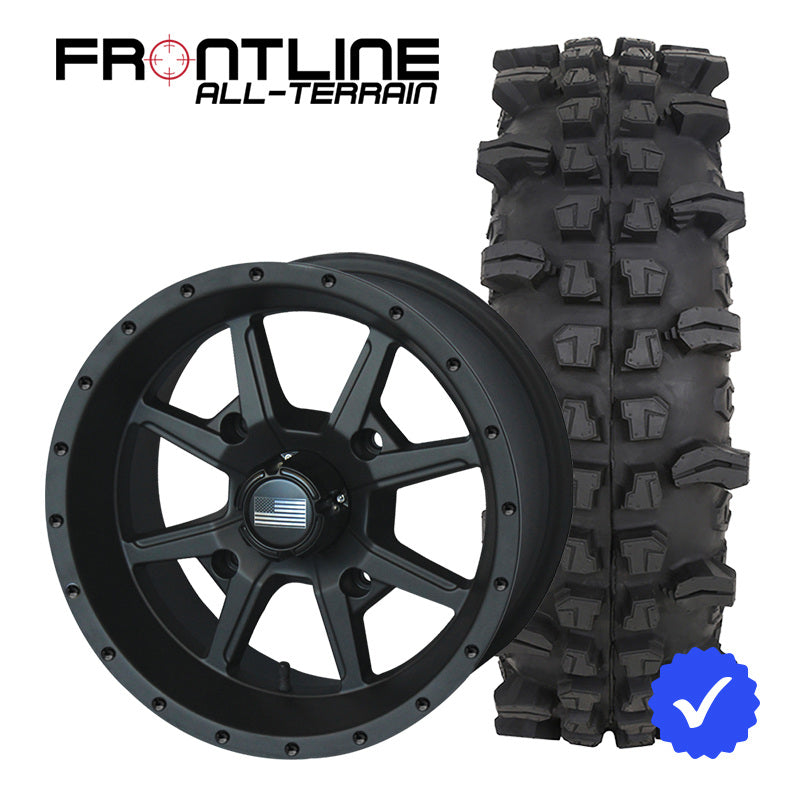

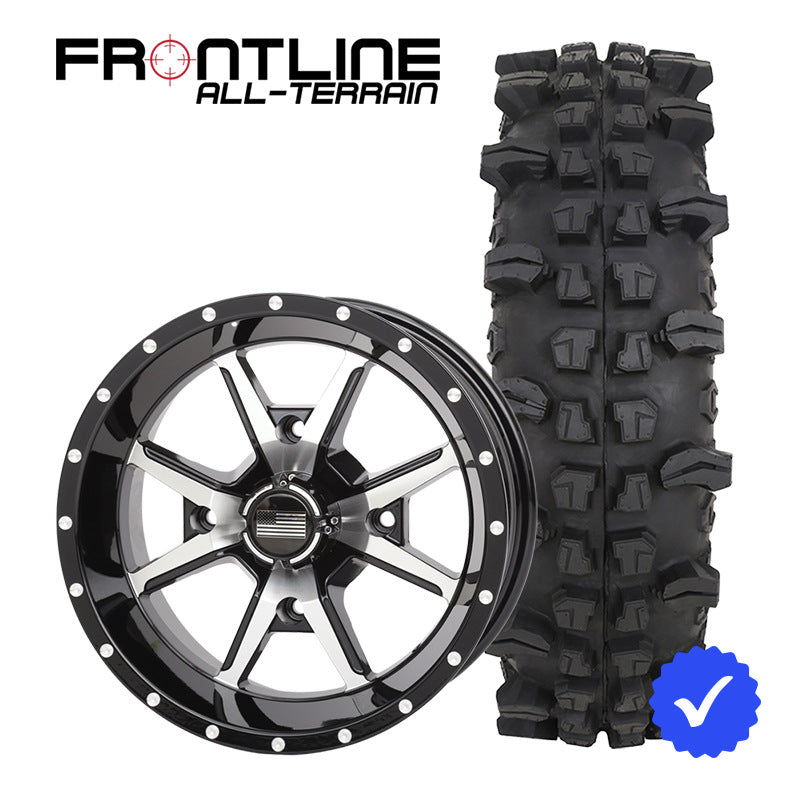

Ready to transform the look, stance, and trail capability of your Side-by-Side or utility quad? This complete, ready-to-bolt-on package pairs the head-turning 14x7 Frontline 556 aluminum wheel with the ultra-aggressive Frontline ACP (All Conditions Performance) 10-ply radial tire. The 556 wheel features a clean, high-strength 8-spoke open architecture rated for 1,000 lbs per wheel, offered in three premium finishes: Stealth Black, Gloss Black, and Gloss Black with Machined Accents.

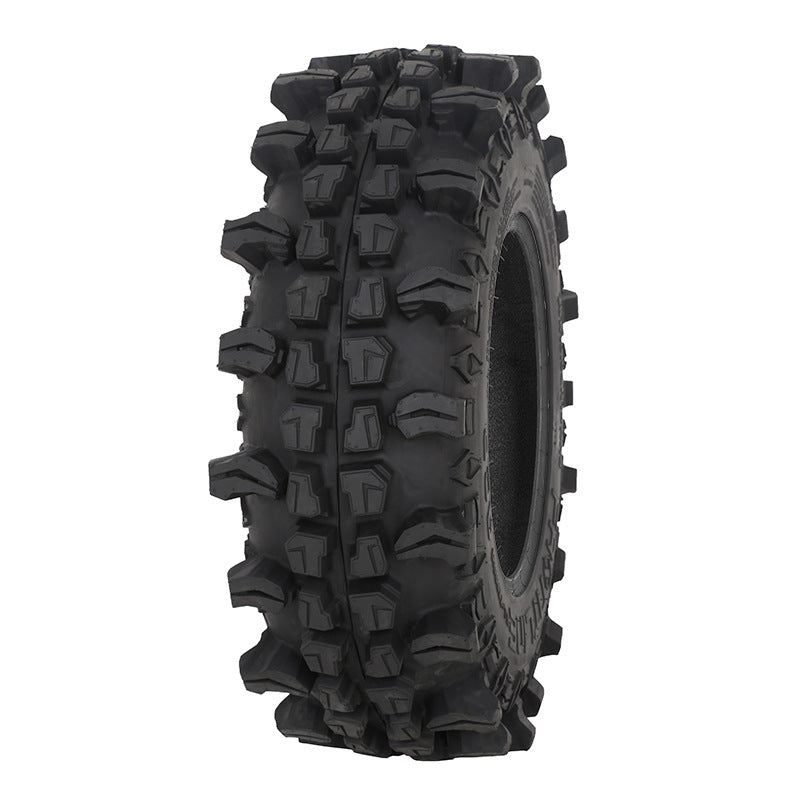

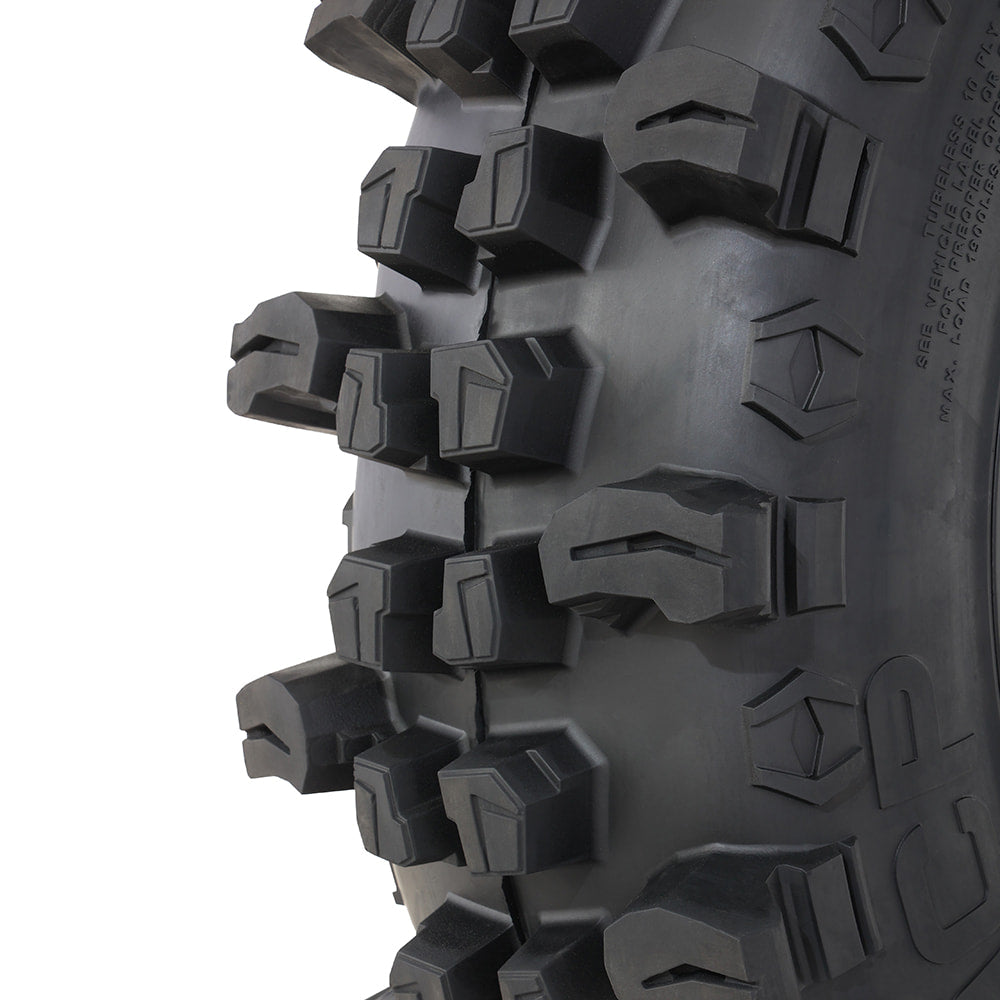

Wrapped around the 556 wheels are Frontline ACP radials, engineered with a heavy-duty 10-ply rated nylon carcass, an integrated deep rim guard, and stepped lugs running from 1.0" at the center to a massive 1.75" at the shoulder. Whether you're running rocky ledges, deep mud ruts, loose gravel, or hardpack fire roads, this combo delivers smooth radial ride comfort, relentless forward bite, and extreme sidewall cut protection.
Delivered fully mounted and aired up: Your complete kit arrives ready to bolt on, complete with 4 pre-mounted wheels and tires, 4 heavy-duty screw-in center caps, and a full set of installation lug nuts. Simply select your wheel finish, bolt pattern, and desired tire size above!
FITMENT VERIFICATION GUARANTEE: After your order is placed, our team personally contacts you to confirm your machine's exact year, make, and model to ensure 100% correct bolt pattern, offset, and lug nut thread pitch before shipping!
âž” View Frontline's Complete UTV and SxS Wheel Fitment & Application Guide
| PART # | TIRE SIZE | PLY RATING | TREAD DEPTH | OVERALL DIA. | OPERATING PSI | MAX LOAD CAPACITY | WEIGHT |
|---|---|---|---|---|---|---|---|
| FLACP27 | 27x10R14 | 10-Ply Radial | 1.0" - 1.75" | 27.2" | 15 - 24 PSI | 1,116 lbs @ 24 PSI | 34.8 lbs |
| FLACP28 | 28x10R14 | 10-Ply Radial | 1.0" - 1.75" | 28.2" | 15 - 24 PSI | 1,185 lbs @ 24 PSI | 37.6 lbs |
| FLACP30 | 30x10R14 | 10-Ply Radial | 1.0" - 1.75" | 30.2" | 15 - 24 PSI | 1,341 lbs @ 24 PSI | 43.2 lbs |
| WHEEL SIZE | BOLT PATTERN | OFFSET | FINISH | LOAD RATING | WHEEL PART # |
|---|---|---|---|---|---|
| 14x7 | 4/110 | 5+2 (+10mm) | Gloss Black / Machined | 1,000 lbs | 14FL01M10 |
| 14x7 | 4/110 | 2+5 (-47mm) | Gloss Black / Machined | 1,000 lbs | 14FL01M11 |
| 14x7 | 4/137 | 5+2 (+10mm) | Gloss Black / Machined | 1,000 lbs | 14FL01M37 |
| 14x7 | 4/156 | 4+3 (+5mm) | Gloss Black / Machined | 1,000 lbs | 14FL01M56 |
| 14x7 | 4/110 | 5+2 (+10mm) | Gloss Black | 1,000 lbs | 14FL01B10 |
| 14x7 | 4/110 | 2+5 (-47mm) | Gloss Black | 1,000 lbs | 14FL01B11 |
| 14x7 | 4/137 | 5+2 (+10mm) | Gloss Black | 1,000 lbs | 14FL01B37 |
| 14x7 | 4/156 | 4+3 (+5mm) | Gloss Black | 1,000 lbs | 14FL01B56 |
| 14x7 | 4/110 | 5+2 (+10mm) | Stealth Black | 1,000 lbs | 14FL01S10 |
| 14x7 | 4/110 | 2+5 (-47mm) | Stealth Black | 1,000 lbs | 14FL01S11 |
| 14x7 | 4/137 | 5+2 (+10mm) | Stealth Black | 1,000 lbs | 14FL01S37 |
| 14x7 | 4/156 | 4+3 (+5mm) | Stealth Black | 1,000 lbs | 14FL01S56 |
| MAKE | MODEL FITMENT | POSITION | OFFSET | BOLT PATTERN | LUG SIZE | LUG KIT # |
|---|---|---|---|---|---|---|
| Can-Am | Commander, Maverick 800/1000, Outlander, Renegade, Defender ('16–'22) | Front / Rear | 5+2 (+10mm) | 4/137 | 10x1.25 | NUTKIT01 |
| Can-Am | Maverick X3 ('18–'21), Maverick Trail | Front / Rear | 5+2 (+10mm) | 4/137 | 12x1.5 | NUTKIT11 |
| Honda | 300 4x4 ('89–'00), 400 Foreman 4x4 ('96–'06) | Front | 5+2 (+10mm) | 4/110 | 10x1.25 | NUTKIT01 |
| Honda | 350 Rancher S-ES ('00–'06), 450/500 Foreman S-ES ('98–'21), 400/420 Rancher SRA ('04–'22) | Rear (Straight Axle) | 2+5 (-47mm) | 4/110 | 10x1.25 | NUTKIT01 |
| Honda | 650/700 Rincon ('02–'22), 420 Rancher AT IRS ('09–'22), Rubicon IRS ('15–'21), Big Red MUV | Front / Rear | 5+2 (+10mm) | 4/110 | 10x1.25 | NUTKIT01 |
| Honda | Pioneer 500 / 700 (All Years) | Front / Rear | 5+2 (+10mm) | 4/110 | 12x1.5 | NUTKIT11 |
| Honda | Pioneer 1000 (All Years) | Front / Rear | 5+2 (+10mm) | 4/137 | 12x1.5 | NUTKIT11 |
| Kawasaki | Brute Force 650i, 750i | Front / Rear | 5+2 (+10mm) | 4/110 | 10x1.25 | NUTKIT01 |
| Kawasaki | Teryx 750, Mule 2000–3000 Series | Front / Rear | 5+2 (+10mm) | 4/137 | 12x1.25 | NUTKIT14 |
| Kawasaki | Mule FXT Pro, FXR, MX, Teryx KRX 1000 | Front / Rear | 4+3 (+5mm) | 4/156 | 12x1.25 | NUTKIT14 |
| Textron / Arctic Cat | Wildcat XX ('19+) | Front / Rear | 4+3 (+5mm) | 4/156 | 12x1.5 | NUTKIT11 |
| Polaris | Sportsman 335/400/450/500/570 ('96–'22), RZR 570, Sportsman 600/700/800, Ranger 500/570/800, RZR 800/900XP ('08–'14), ACE | Front / Rear | 4+3 (+5mm) | 4/156 | 3/8"-24 | NUTKIT03 |
| Polaris | Sportsman 550/850/1000 XP ('09–'22), Scrambler 850/1000 XP ('14–'22) | Front / Rear | 4+3 (+5mm) | 4/156 | 10x1.25 | NUTKIT01 |
| Polaris | RZR XP 1000 / XP 4 1000 ('14–'21), RZR 900 / 1000 S ('15–'22), Ranger 570 Full Size / 900XP / 1000 ('13–'22) | Front / Rear | 4+3 (+5mm) | 4/156 | 12x1.5 | NUTKIT11 |
| Yamaha | Grizzly 350/400/450/550/660/700, Kodiak 400/450/700, Big Bear 400, Rhino 450/660/700 | Front / Rear | 5+2 (+10mm) | 4/110 | 10x1.25 | NUTKIT01 |
| Yamaha | Viking, Wolverine, YXZ 1000R ('16–'18) | Front / Rear | 5+2 (+10mm) | 4/110 | 12x1.25 | NUTKIT14 |
| Yamaha | YXZ 1000R ('19–'21), Wolverine RMAX 1000 ('21–'22) | Front / Rear | 5+2 (+10mm) | 4/156 | 12x1.25 | NUTKIT14 |
