Metal FX® Alpha 6R Beadlock UTV 15" Wheel | Gloss Black DDT Face
SKU:
Regular priceFrom
$389.00
More stock coming soon
Free Delivery On Every Order
No minimums
100% Authentic Tires
No grey market, no knock-offs
4.9 / 5 Stars
Rated by real equipment owners

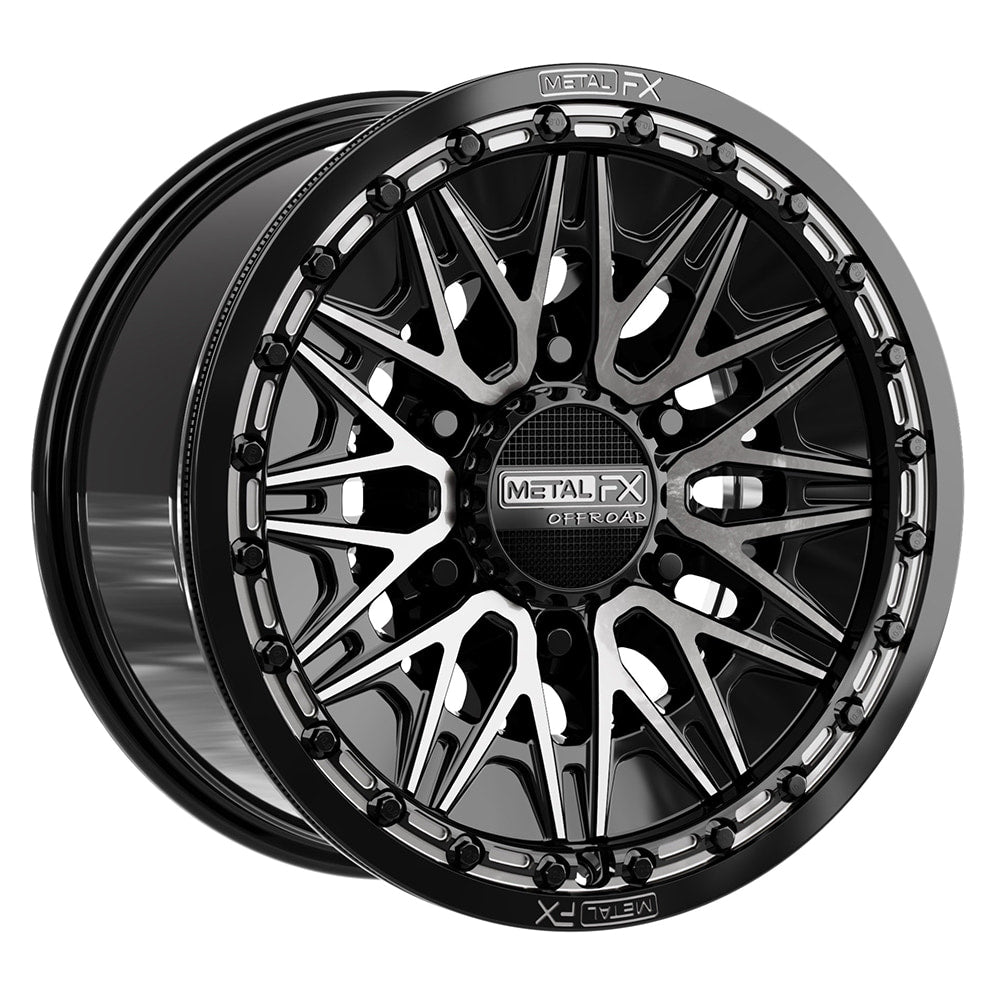

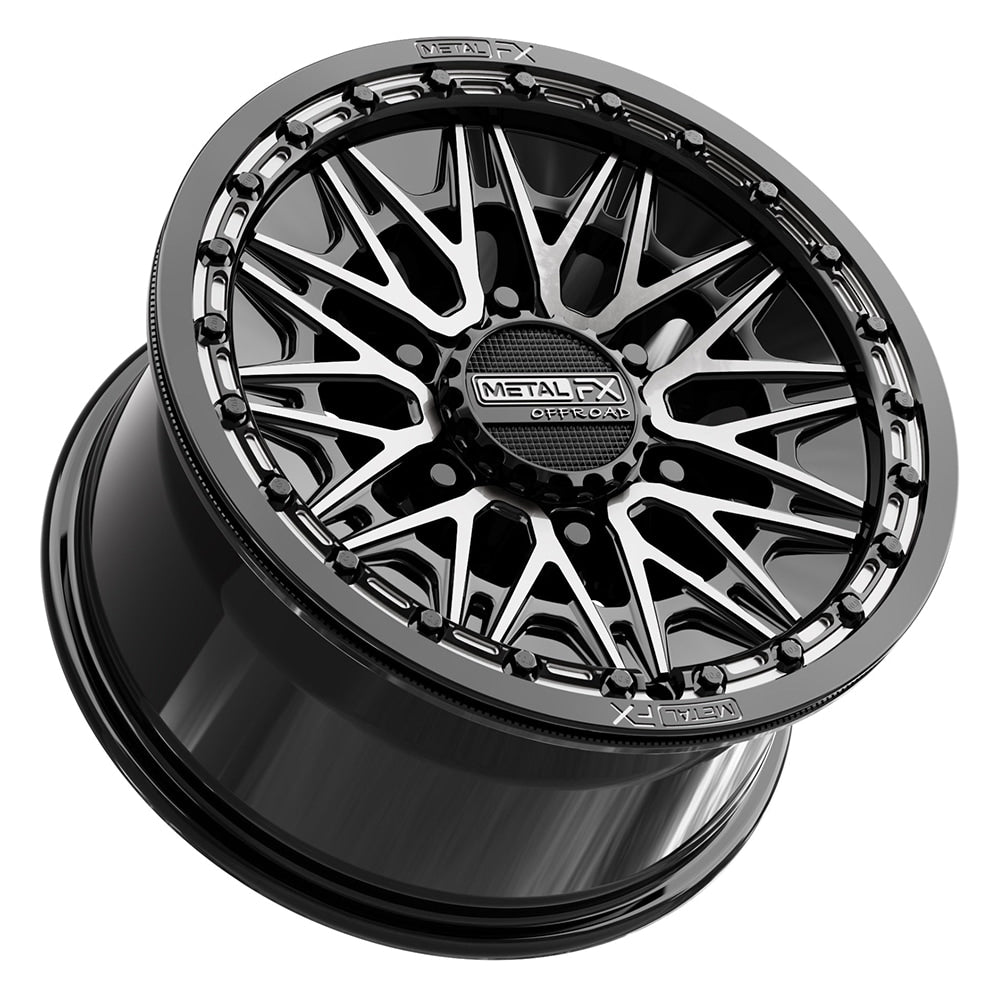

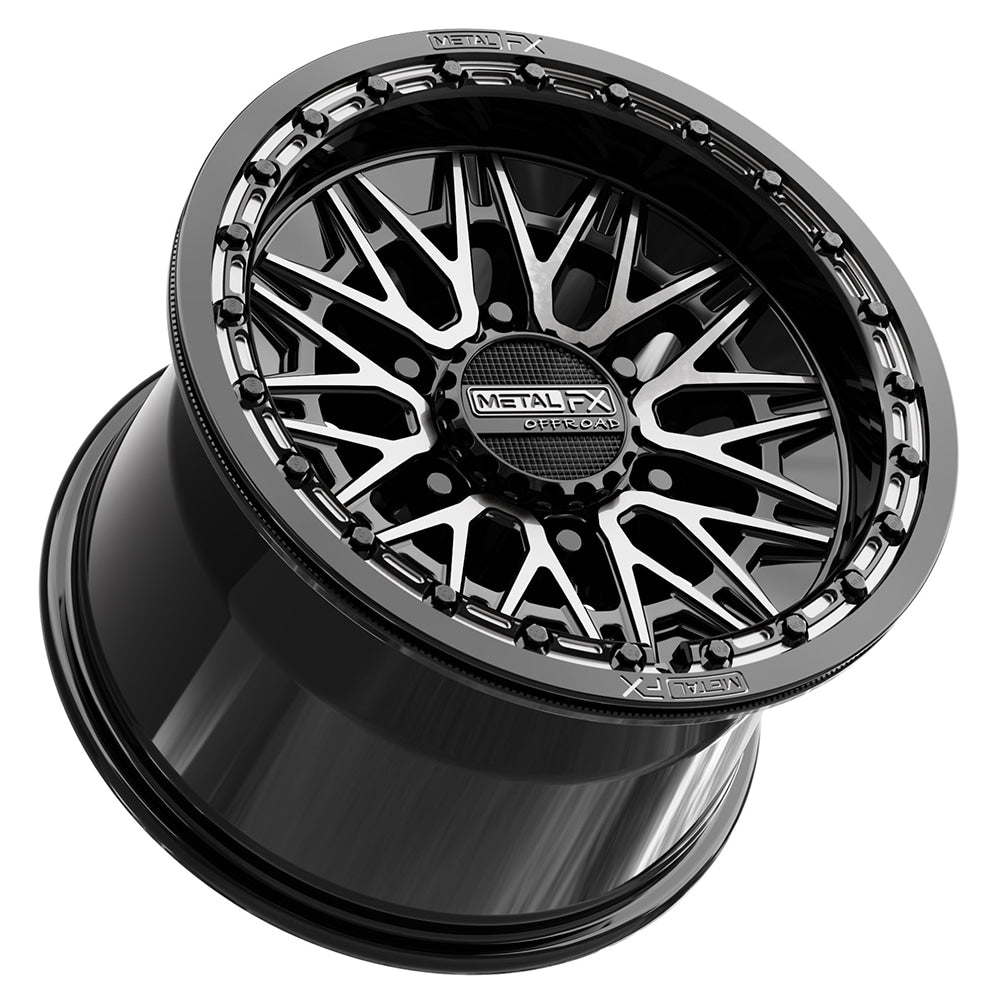

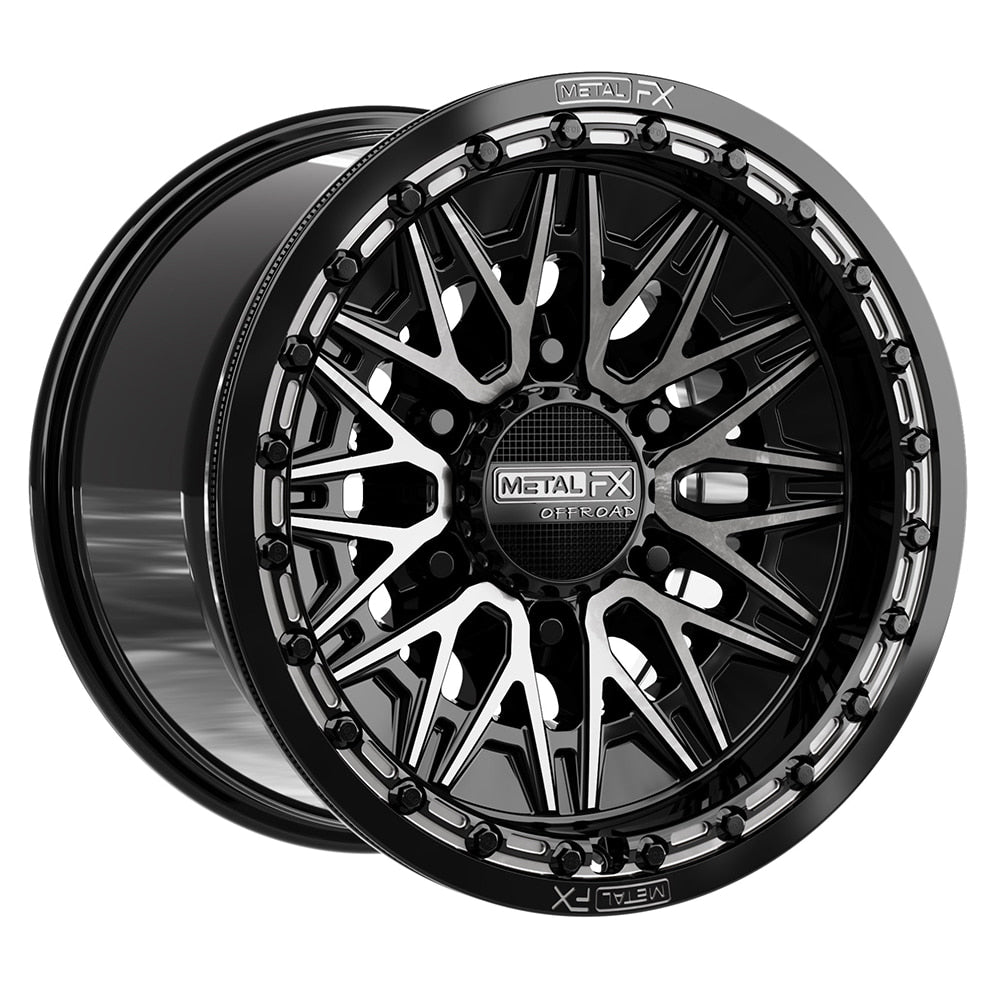

Dominate the dunes and crush the trails with the MetalFX Offroad Alpha 6R Beadlock Wheel. Engineered specifically for today's highest-horsepower UTVs—like the Can-Am Maverick R—this wheel represents the next evolution in powersports performance. Boasting a massive 1,650 lb load rating, it’s built to handle 35-inch tires and the absolute most extreme abuse you can throw at it. Finished in an aggressive Gloss Black with a machined DDT (Double Dark Tint) face, the Alpha 6R perfectly balances rugged durability with show-stopping, custom style.
Alpha 6R Key Features
- Heavy-Duty Construction: Features a staggering 1,650 lb load rating, making it the perfect upgrade for heavy, high-powered UTVs running oversized tires.
- True Beadlock Security: Clamps your tire bead down hard, allowing you to run ultra-low air pressures in the sand or on the rocks without the fear of de-beading.
- Aggressive Styling: Coated in a stunning Gloss Black finish with a DDT machined face and a sleek Gloss Black beadlock ring.
- Maverick R Ready: Specifically designed with a 6-lug (6x139.7 / 6x5.5) bolt pattern, making it the ultimate direct-fit upgrade for your high-performance machine.
- Offset 5+3 (+25mm) for 15x8 size.
- Offset 6+4 (+25mm) for 15x10 size.
⚠️ Important Fitment Notes
- Mud Scrapers: Before installing on a Can-Am Maverick R, you must remove the factory mud scrapers prior to installation to avoid severely damaging the wheels.
- Hardware: All Metal FX Offroad wheels require splined lug nuts for proper installation (sold separately).
Alpha R & 6R Sizes and Specifications
| SKU | Model | Finish | Wheel Size | Bolt Pattern | Backspace (in) | Offset (mm) | Offset (in) | Center Bore | Weight (lbs) | Load Rating | Lip Size | Cap SKU | Cap Hardware SKU | BL Ring SKU | BL Hardware SKU |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 78760 | Alpha R Beadlock | Satin Black w/ Gloss Black Ring | 15x8 | 5x114.3 (5x4.5) | 4.4 | 0mm | 4+4 | 66.1 | 22.3 | 1650 | 1.24 | 10333 | - | 10245 | 10602 |
| 78761 | Alpha R Beadlock | Gloss Black DDT Face | 15x8 | 5x114.3 (5x4.5) | 4.4 | 0mm | 4+4 | 66.1 | 22.3 | 1650 | 1.24 | 10334 | - | 10247 | 10602 |
| 78770 | Alpha R Beadlock | Satin Black w/ Gloss Black Ring | 15x10 | 5x114.3 (5x4.5) | 5.4 | 0mm | 5+5 | 66.1 | 23.4 | 1650 | 2.31 | 10333 | - | 10245 | 10602 |
| 78771 | Alpha R Beadlock | Gloss Black DDT Face | 15x10 | 5x114.3 (5x4.5) | 5.4 | 0mm | 5+5 | 66.1 | 23.4 | 1650 | 2.31 | 10334 | - | 10247 | 10602 |
| 78780 | Alpha 6R Beadlock | Satin Black w/ Gloss Black Ring | 15x8 | 6x139.7 (6x5.5) | 5.5 | 25mm | 5+3 | 78.1 | 23.8 | 1650 | 1.02 | 10338 | - | 10245 | 10602 |
| 78781 | Alpha 6R Beadlock | Gloss Black DDT Face | 15x8 | 6x139.7 (6x5.5) | 5.5 | 25mm | 5+3 | 78.1 | 23.8 | 1650 | 1.02 | 10339 | - | 10247 | 10602 |
| 78790 | Alpha 6R Beadlock | Satin Black w/ Gloss Black Ring | 15x10 | 6x139.7 (6x5.5) | 6.5 | 25mm | 6+4 | 78.1 | 24.3 | 1650 | 2.07 | 10338 | - | 10245 | 10602 |
| 78791 | Alpha 6R Beadlock | Gloss Black DDT Face | 15x10 | 6x139.7 (6x5.5) | 6.5 | 25mm | 6+4 | 78.1 | 24.3 | 1650 | 2.07 | 10339 | - | 10247 | 10602 |
Metal FX Motorsports
