$163.99 – $169.99
Couldn't load pickup availability

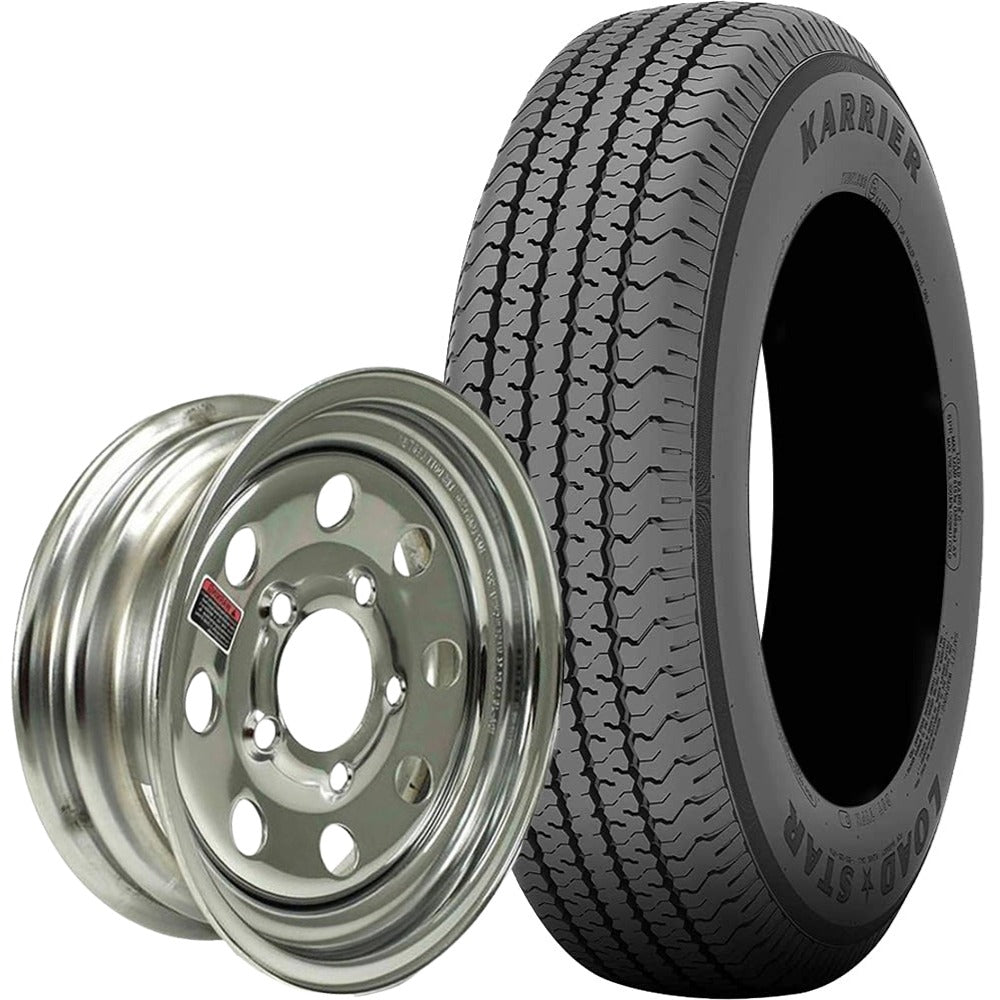

Experience the pinnacle of long-haul towing confidence with this pre-mounted Kenda® Karrier KR03 radial trailer tire and heavy-duty 14" Steel Modular (MOD) wheel assembly. Built to conquer heavy payloads and sustained interstate travel, this professional combination pairs Kenda’s flagship highway radial with commercial-grade roll-formed steel wheels. Designed to absorb vibrations, eliminate trailer bounce, and maintain tracking stability, this package arrives aired, balanced, and ready for fast bolt-on installation on boat trailers, travel trailers, equipment haulers, and enclosed cargo rigs.

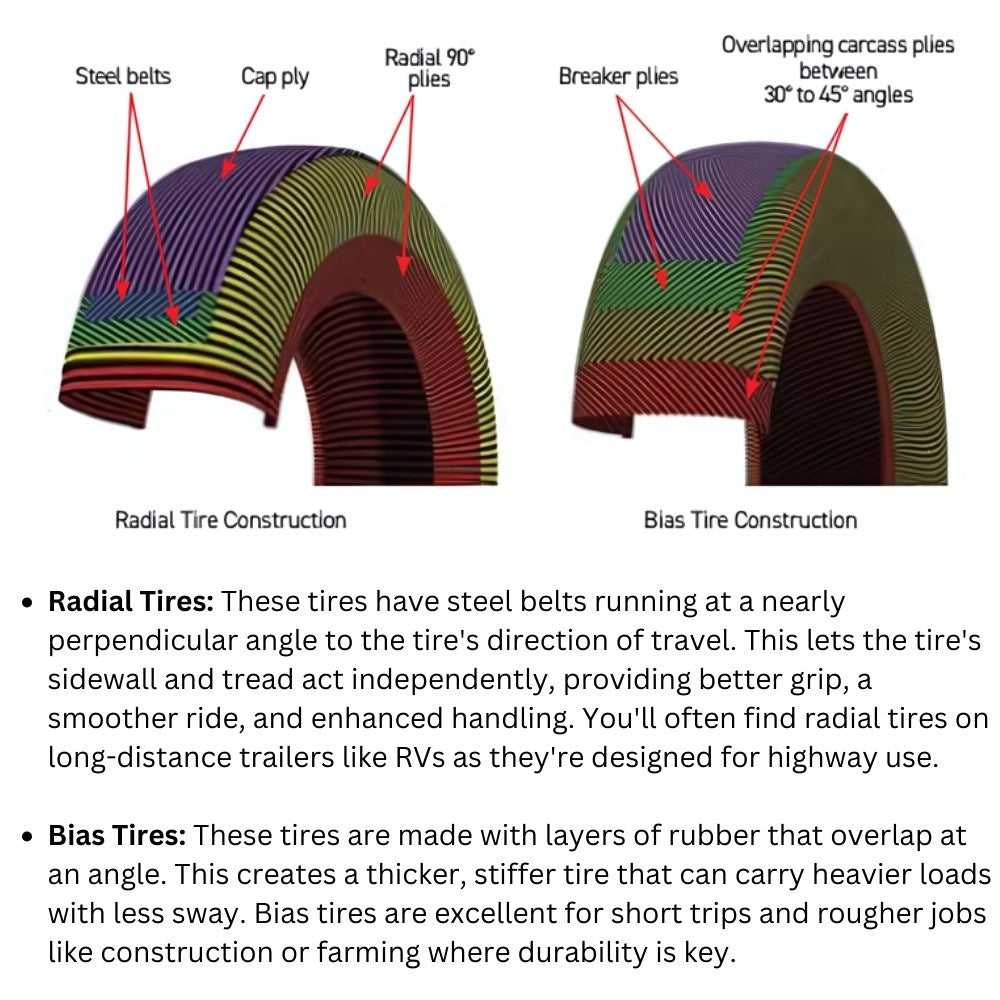

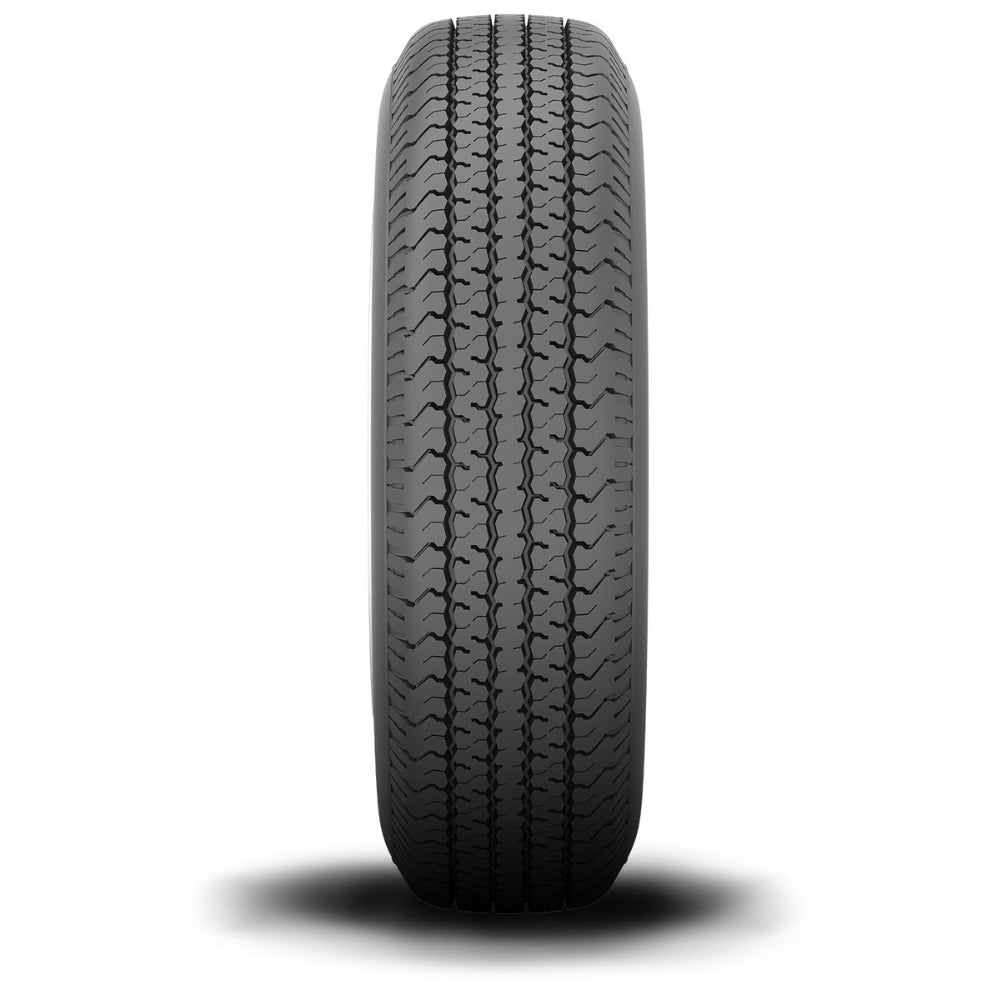

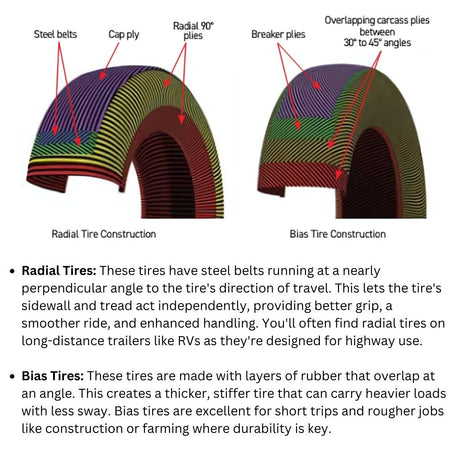

The Kenda Karrier Loadstar KR03 is engineered with double steel belts and full nylon reinforcement plies, delivering robust puncture resistance and cooler operating temperatures under high-stress towing. Its all-season computer-designed highway tread channels water away through deep circumferential grooves to resist hydroplaning, while strategically placed shoulder blocks ensure even wear and reduced road noise. Rated for M-speed highway certification (81 mph), it pairs seamlessly with Kenda’s 14x5.5JJ Zero-Offset Modular Steel Wheel boasting an upgraded 2,200 lb load rating per rim on a standard 5-on-4.5" (5x4.5) bolt circle with a universal 3.19" center pilot bore.

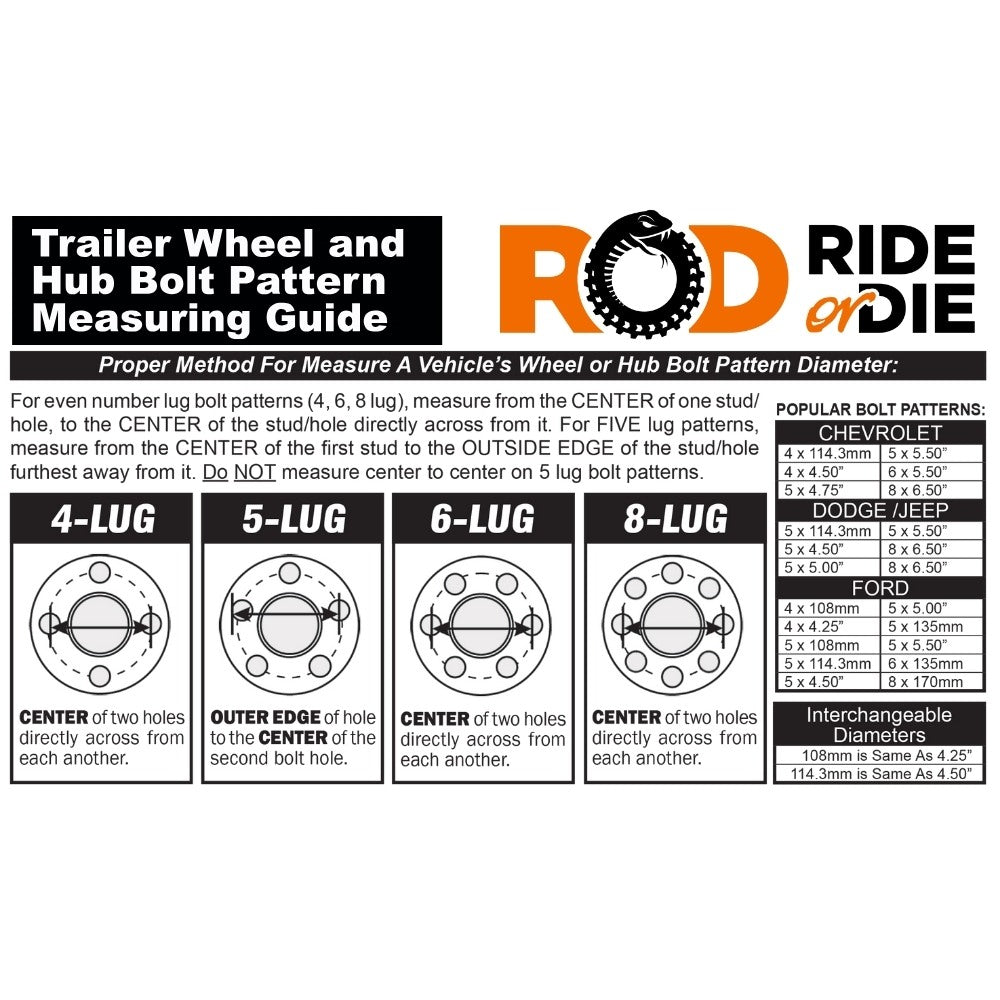

PLEASE NOTE: Pre-mounted assembly arrives fully seated and ready to bolt on! Double-check your trailer hub's bolt pattern (5 on 4.5"), center pilot bore (3.19"), and tire size designation before ordering, and always verify cold tire inflation pressure prior to towing.

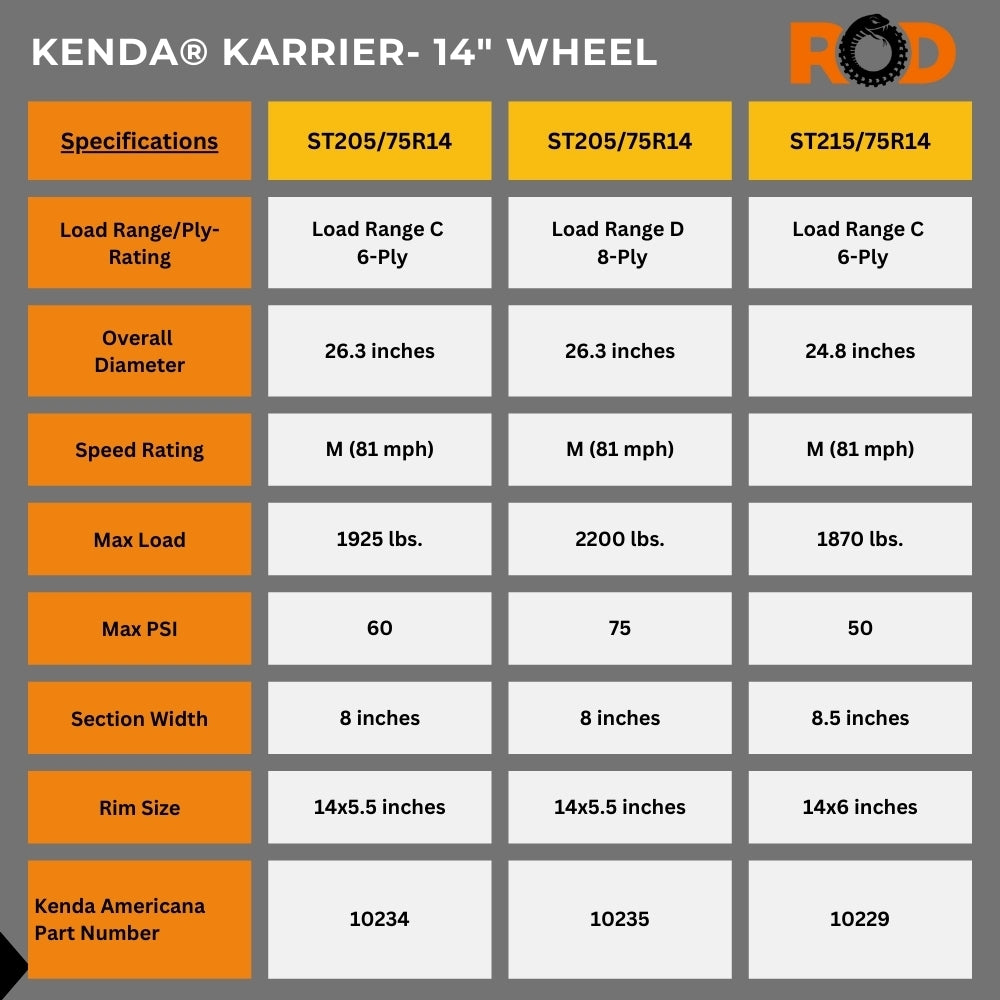

| TIRE PART # | TIRE SIZE | LOAD RANGE / PLY | MAX LOAD (lbs.) | MAX PSI | OVERALL DIA. | SECTION WIDTH | SPEED RATING | RIM SIZE | WHEEL BOLT PATTERN | WHEEL CAPACITY |
|---|---|---|---|---|---|---|---|---|---|---|
| 10234 | ST205/75R14 | Load Range C (6-Ply) | 1,925 lbs | 60 PSI | 26.3" | 8.0" | M (81 mph) | 14x5.5JJ (0 Offset) | 5 on 4.5" (5-4.5) | 2,200 lbs |
| 10235 | ST205/75R14 | Load Range D (8-Ply) | 2,200 lbs | 75 PSI | 26.3" | 8.0" | M (81 mph) | 14x5.5JJ (0 Offset) | 5 on 4.5" (5-4.5) | 2,200 lbs |
| 10229 | ST215/75R14 | Load Range C (6-Ply) | 1,870 lbs | 50 PSI | 26.8" | 8.5" | M (81 mph) | 14x5.5JJ (0 Offset) | 5 on 4.5" (5-4.5) | 2,200 lbs |

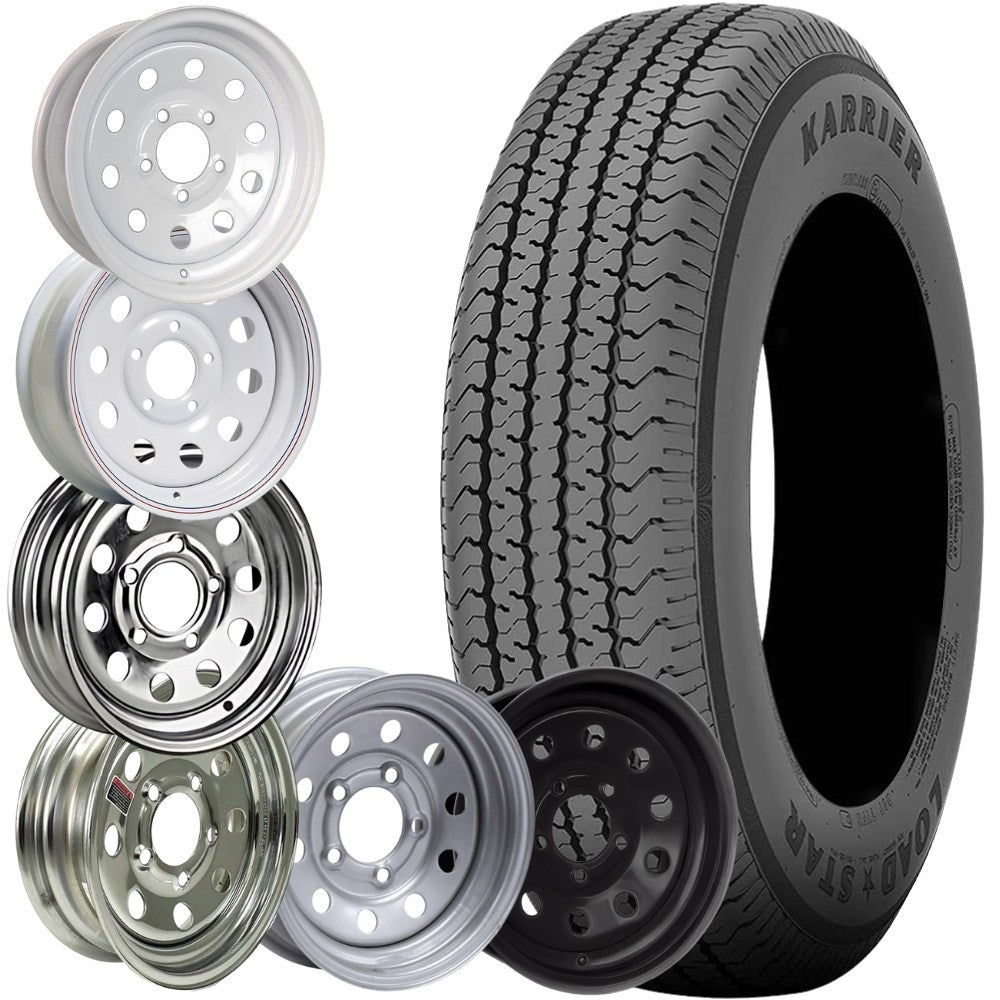

| WHEEL PART # | SIZE | BOLT PATTERN | OFFSET | CENTER PILOT | FINISH | LOAD CAPACITY |
|---|---|---|---|---|---|---|

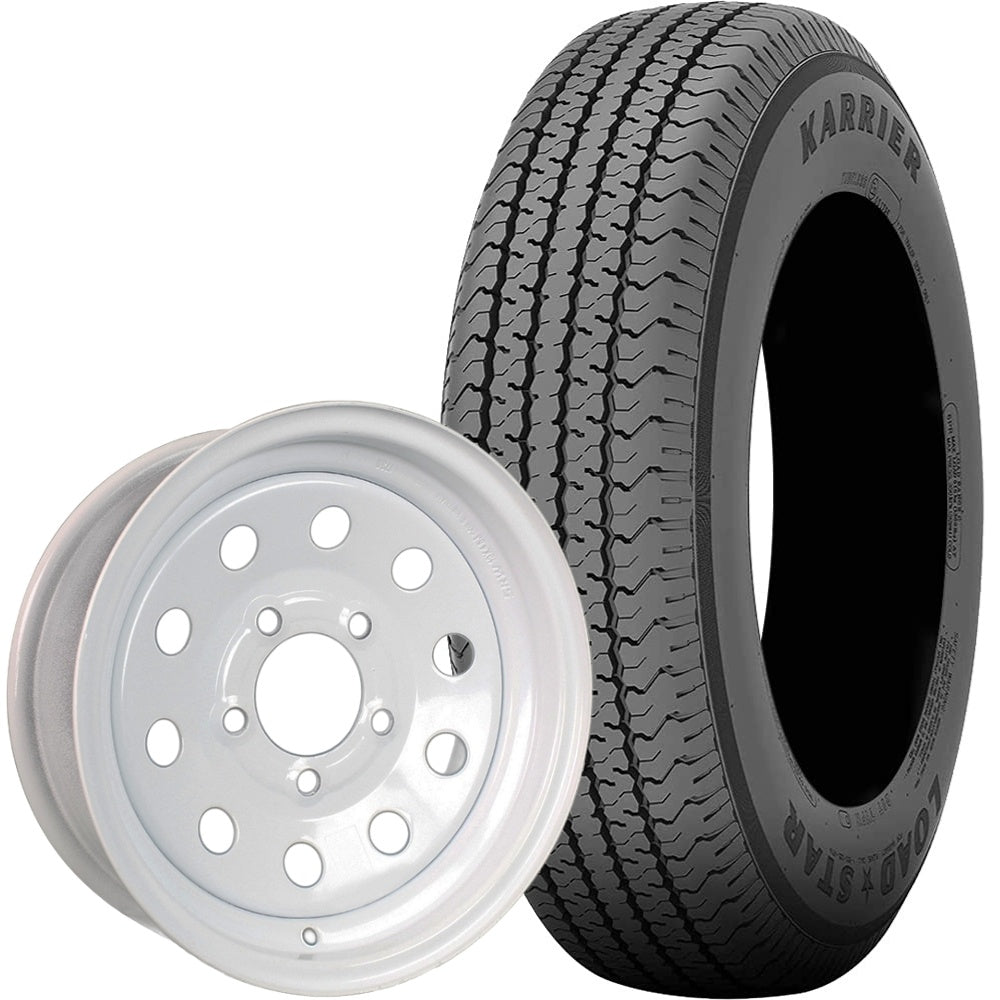

| 20365 | 14x5.5JJ | 5 on 4.5" (5-4.5) | 0 (Zero) | 3.19" | Solid White Powder Coat | 2,200 lbs |

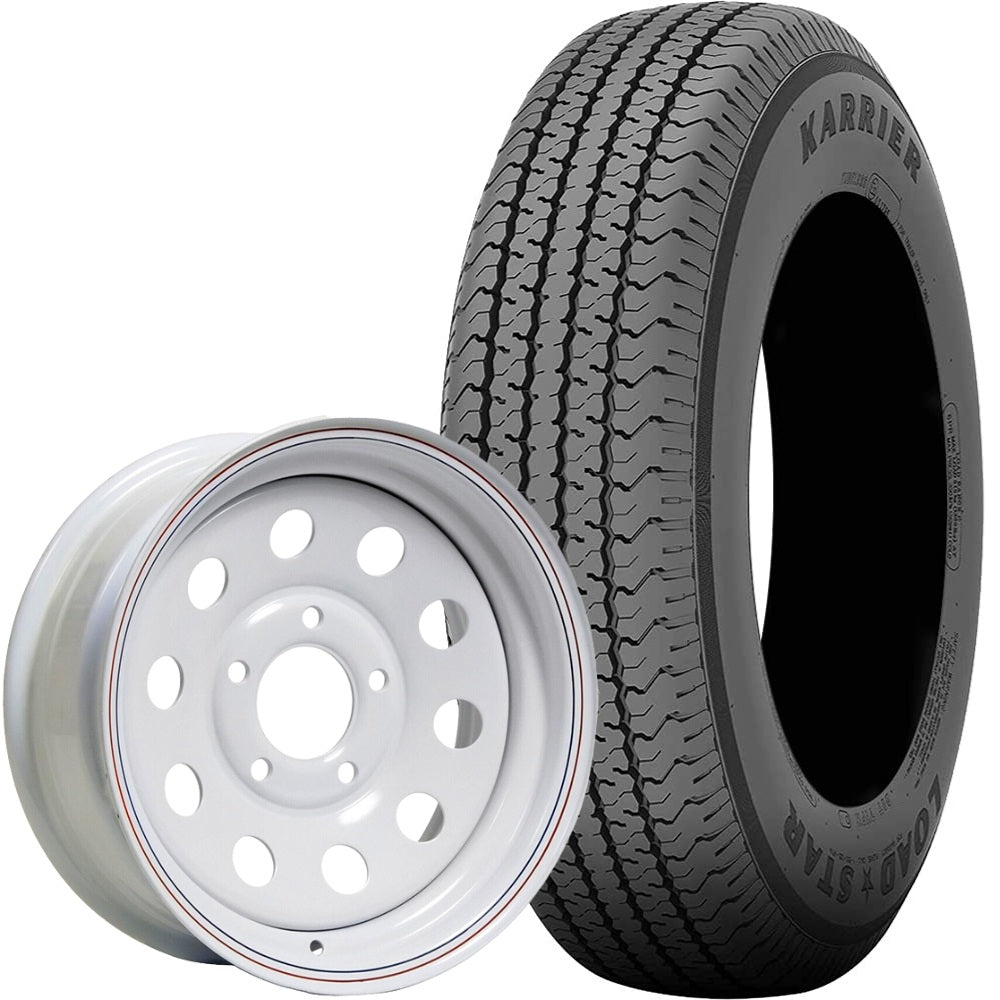

| 20362 | 14x5.5JJ | 5 on 4.5" (5-4.5) | 0 (Zero) | 3.19" | White Powder Coat w/ Red & Blue Pinstripes | 2,200 lbs |

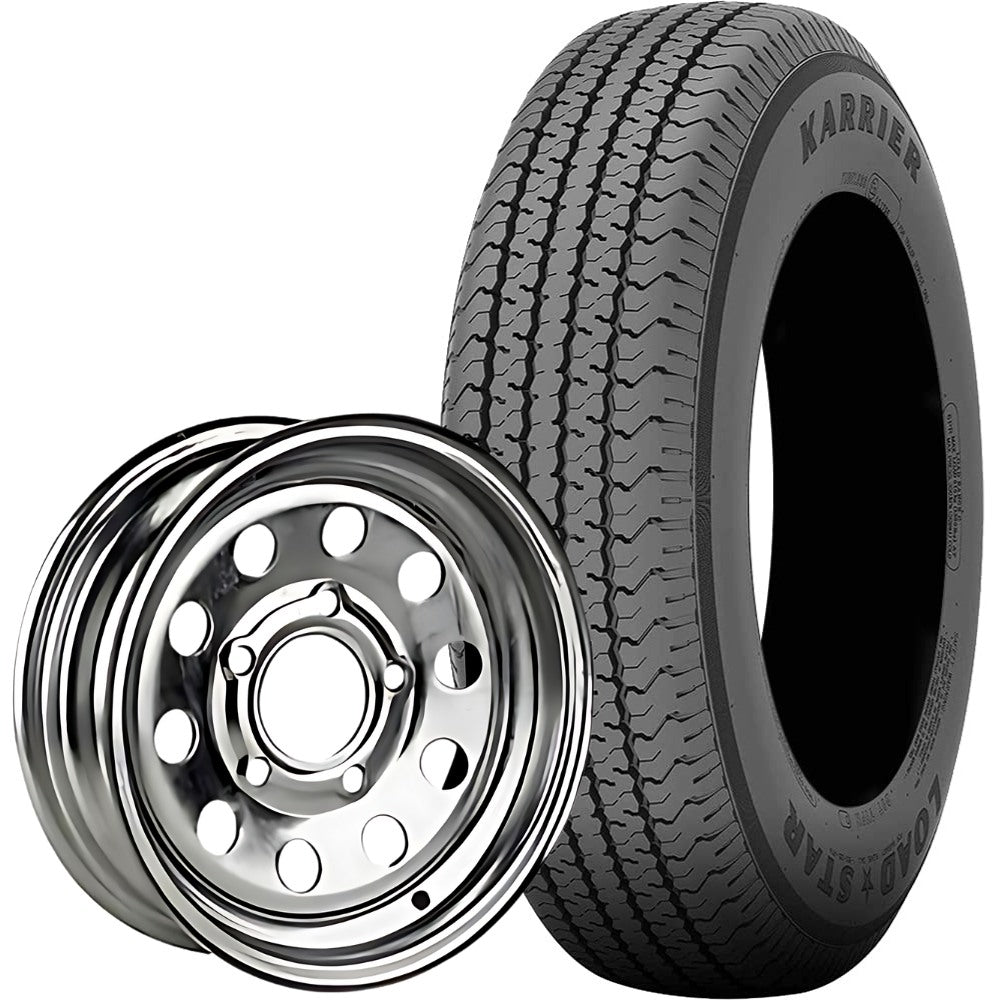

| 20364 | 14x5.5JJ | 5 on 4.5" (5-4.5) | 0 (Zero) | 3.19" | Marine Hot-Dipped Galvanized | 2,200 lbs |
| 20368 | 14x5.5JJ | 5 on 4.5" (5-4.5) | 0 (Zero) | 3.19" | Triple-Plated Chrome | 2,200 lbs |

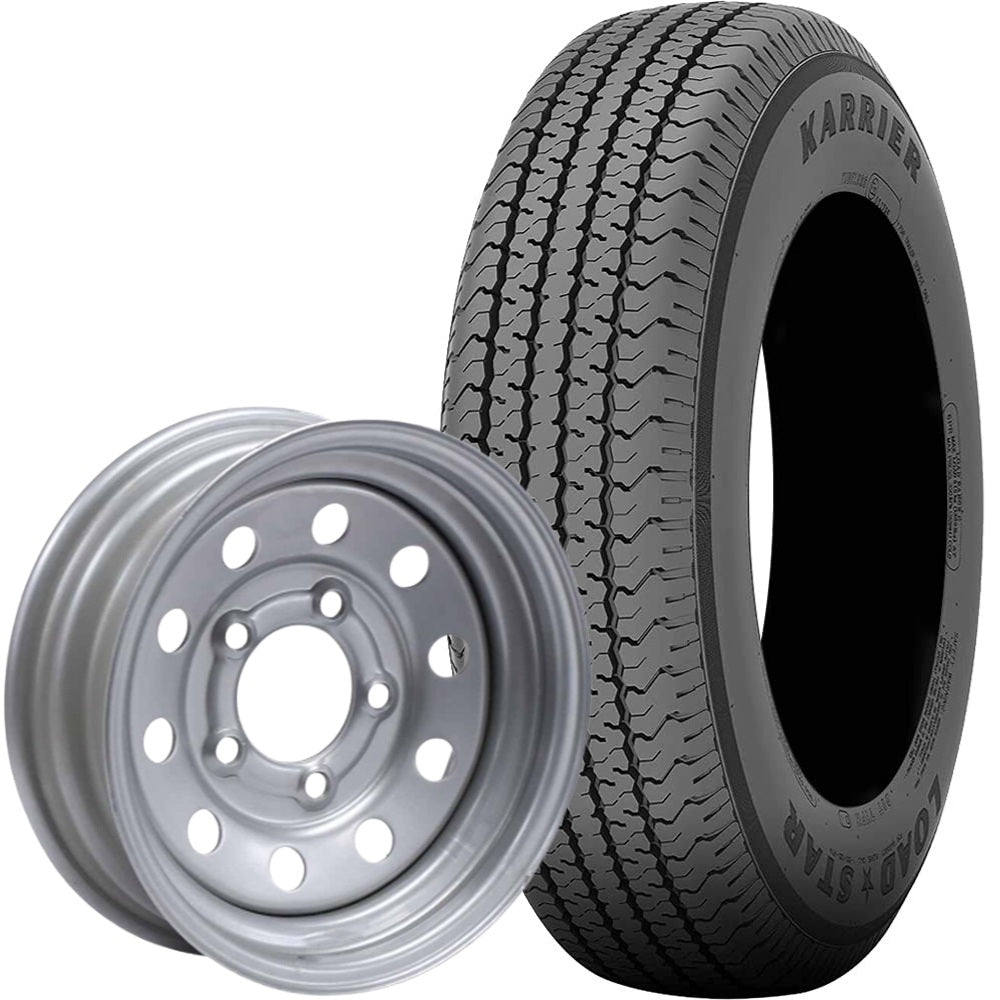

| 20363 | 14x5.5JJ | 5 on 4.5" (5-4.5) | 0 (Zero) | 3.19" | Metallic Silver Powder Coat | 2,200 lbs |

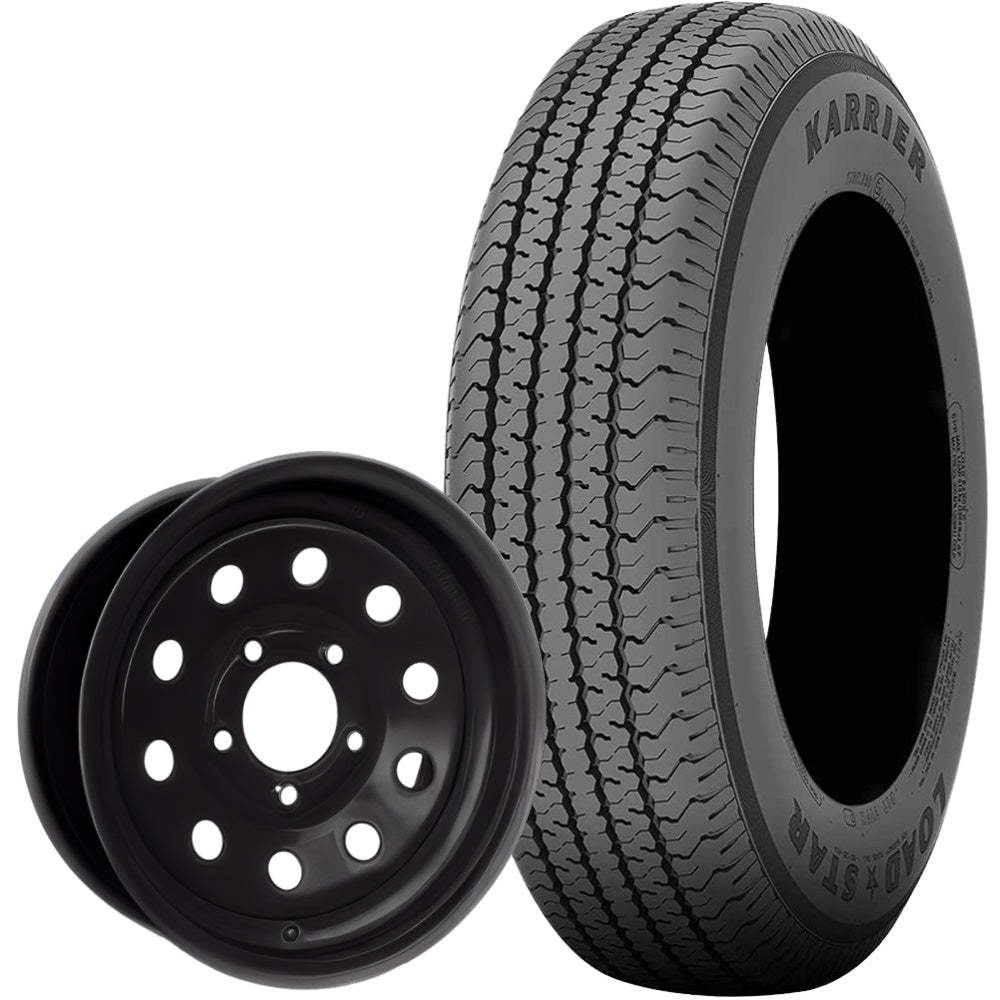

| 20315 | 14x5.5JJ | 5 on 4.5" (5-4.5) | 0 (Zero) | 3.19" | E-Coated Gloss Black | 2,200 lbs |
