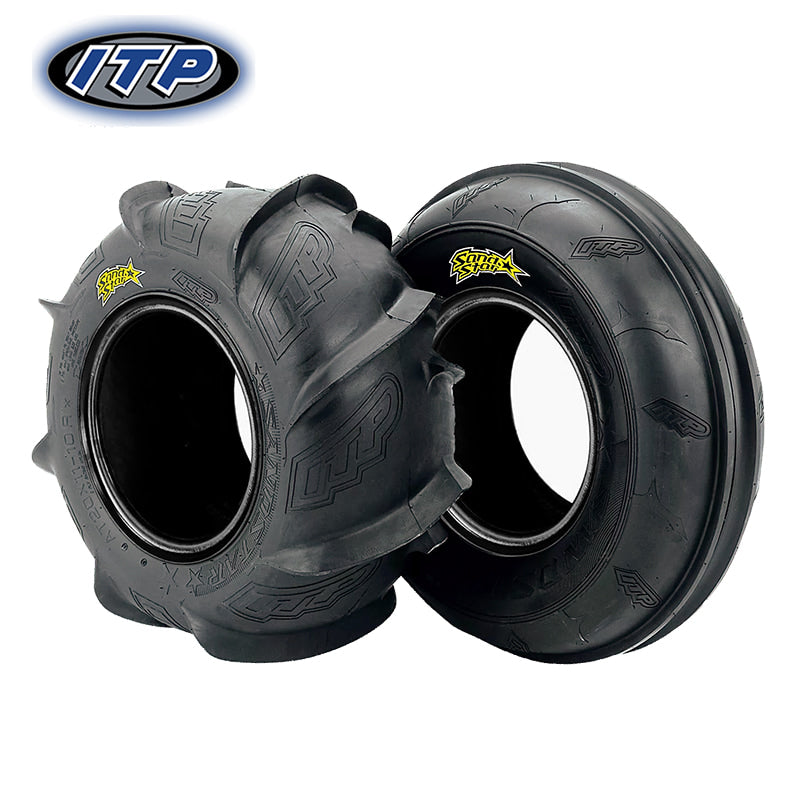

ITP® Sand Star® ATV & SxS Paddle Tires — Premium Precision and Massive Dune Hookup!
Dominate the dunes with the industry standard for sand performance: the ITP® Sand Star®. Engineered specifically for pure sand and desert applications, these lightweight paddle tires deliver unparalleled floatation, blistering acceleration, and precision steering control on the steepest razorbacks and softest bowls. Built by ITP—the undisputed leader in ATV paddle tires—the Sand Star utilizes a specialized 2-ply rated bias construction that drastically reduces rotational mass, allowing your machine to spool up faster and float effortlessly over loose, deep sand.

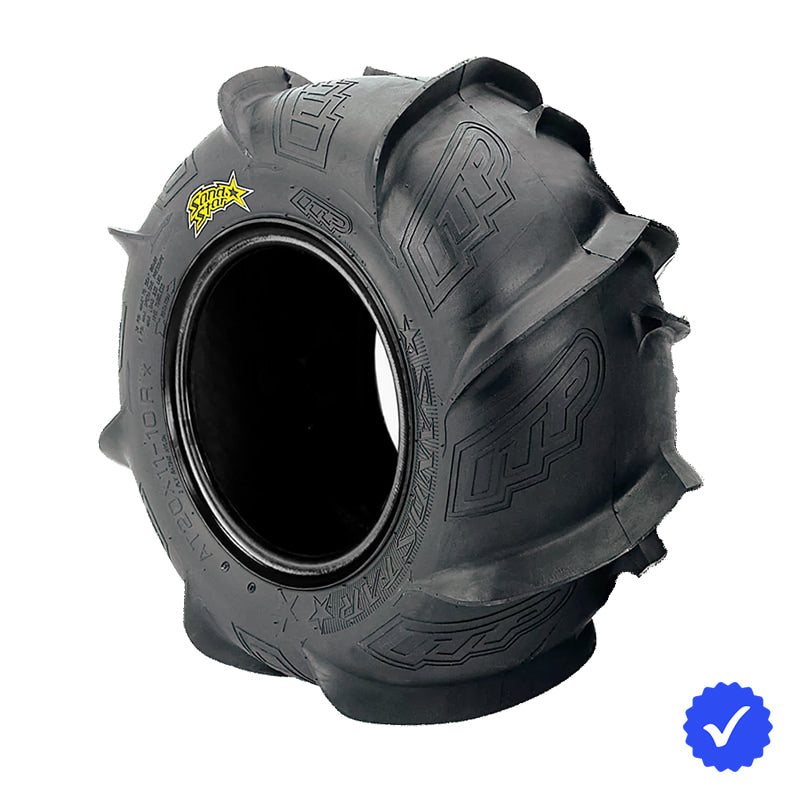

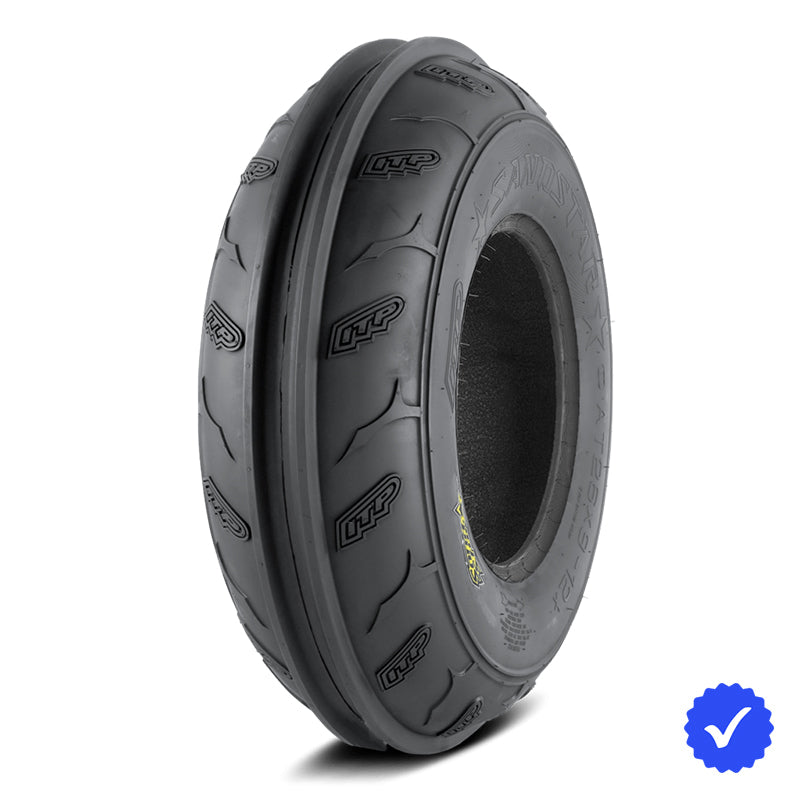

The Sand Star series features application-specific profiles designed to work together as a flawless system. The Front Tire utilizes a patent-pending dual-rib center tread that cuts through the sand like a rudder, providing razor-sharp cornering and unmatched steering authority without pushing. The Rear Tire boasts an aggressive 8-paddle design with 30mm deep blades. What sets it apart are the molded "mini-scoops" integrated between the main paddles, which act as secondary bite points for massive straight-line acceleration and rock-solid lateral stability during high-speed dune carving.
📍 Local Athens ATV & SxS Riders: Gearing up for a trip out west to the dunes? Order your ITP Sand Star tires online and select in-store pickup at our Athens, TN shop. We offer professional, in-house mounting to get your sport quad or Side-by-Side ready for the sand.
PLEASE NOTE: Tire only, wheel NOT included! Double-check your front and rear rim diameter requirements before ordering. Front (ribbed) and Rear (paddle) tires are sold individually based on the size selected.
ITP Sand Star Key Features & Highlights
-
Lightweight 2-Ply Bias Carcass: Highly flexible, low-mass construction maximizes footprint floatation and allows engines to spool up RPMs instantly in deep sand.
-

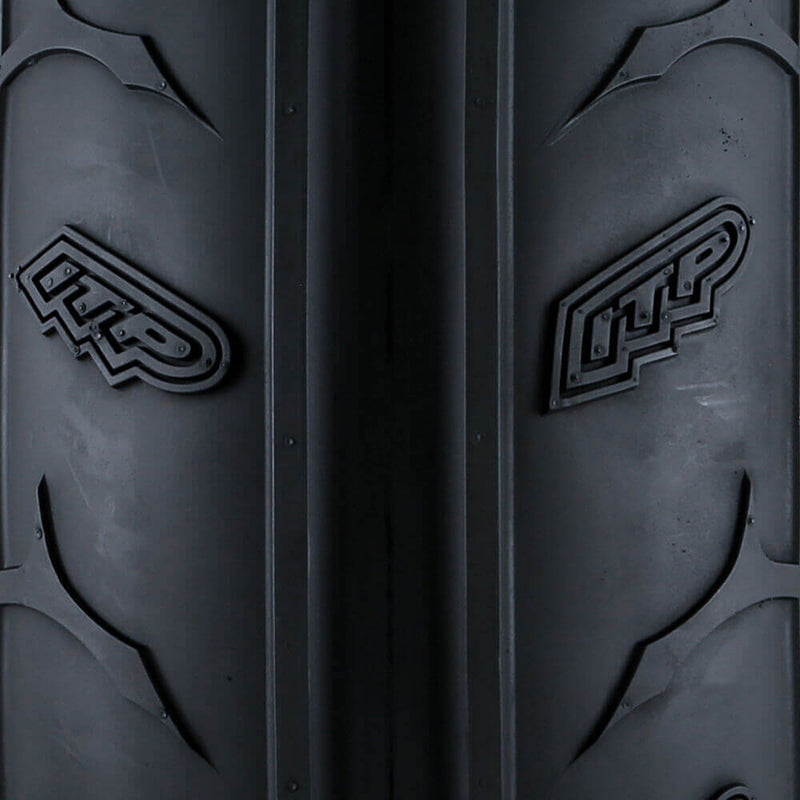

Dual-Rib Front Design: Specialized center-ribs act as a steering rudder, eliminating front-end push and delivering razor-sharp directional control in soft bowls.
-
8-Paddle Rear Design (30mm Depth): Massive 30mm primary paddles provide violent straight-line hookup and acceleration for hill climbs.
-
Integrated Mini-Scoops: Secondary molded scoops between the main paddles deliver lateral bite for stable, high-speed cornering on steep dune faces.
-
Purpose-Built Compound: Specifically formulated rubber resists "chunking" while maintaining flexibility for maximum sand floatation.
-
NHS Rated: Designed exclusively for off-road sand and desert use (Not for Highway Service).
ITP Sand Star Master Sizing & Technical Specifications
| PART # |
TIRE SIZE |
POSITION |
PLY RATING |
OVERALL DIA. (in) |
MOUNTED WIDTH (in) |
TREAD DEPTH (in) |
MAX LOAD (lbs) |
WEIGHT (lbs) |
| 5000526 / 5000536 |
18x9.50-8 |
Rear (Paddle) |
2-Star |
18.1" |
8.5" |
29/32" |
135 lbs |
9.0 lbs |
| 5000436 / 5000446 |
20x11-8 |
Rear (Paddle) |
2-Star |
21.3" |
9.7" |
37/32" |
240 lbs |
12.1 lbs |
| 5000496 / 5000506 |
20x11-9 |
Rear (Paddle) |
2-Star |
21.3" |
9.7" |
37/32" |
240 lbs |
11.8 lbs |
| 5000516 |
19x6-10 |
Front (Rib) |
2-Star |
18.6" |
5.9" |
13/32" |
165 lbs |
6.8 lbs |
| 5000456 / 5000466 |
20x11-10 |
Rear (Paddle) |
2-Star |
21.3" |
9.6" |
37/32" |
235 lbs |
12.6 lbs |
| 5000416 |
21x7-10 |
Front (Rib) |
2-Star |
21.1" |
6.9" |
14/32" |
165 lbs |
9.8 lbs |
| 5000426 |
22x8-10 |
Front (Rib) |
2-Star |
21.8" |
7.7" |
16/32" |
200 lbs |
10.4 lbs |
| 5000476 / 5000486 |
22x11-10 |
Rear (Paddle) |
2-Star |
21.9" |
9.9" |
37/32" |
265 lbs |
13.6 lbs |
| 5000786 |
26x9-12 |
Front (Rib) |
2-Star |
26.1" |
8.1" |
19/32" |
385 lbs |
14.1 lbs |
| 5000766 / 5000776 |
26x11-12 |
Rear (Paddle) |
2-Star |
26.3" |
9.9" |
30/32" |
385 lbs |
17.1 lbs |
The videos below walk through the ITP Sand Star's dual-rib front steering design, aggressive rear paddle layout, and high-speed dune performance.
