About Kenda® Tires and Wheels
$145.99 – $162.99
Couldn't load pickup availability

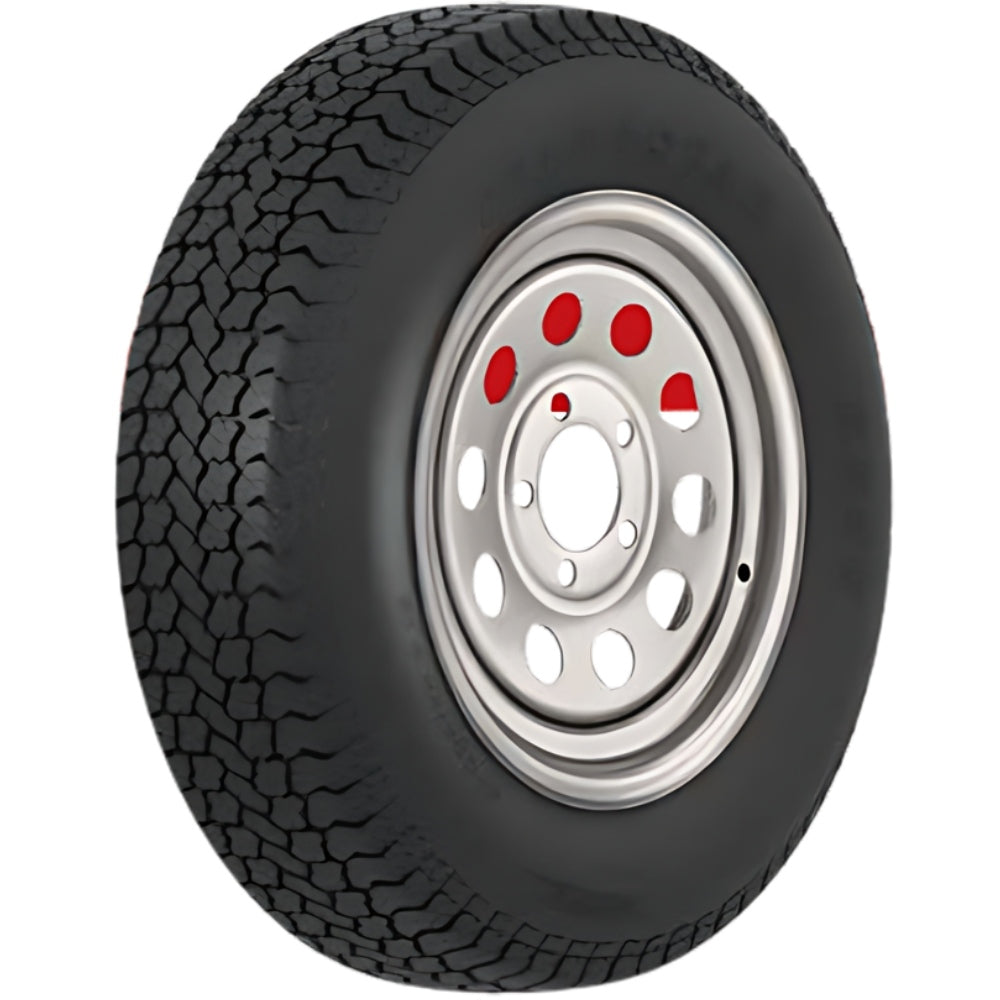

Upgrade your rig with one of the most trusted names on the road: the pre-mounted Kenda® Loadstar K550 bias trailer tire and Kenda® Modular (MOD) steel wheel assembly. Whether you need a direct replacement set for your work trailer or an emergency spare ready to bolt on, this pre-mounted package eliminates mounting headaches and downtime. Engineered specifically for small-to-midsize utility trailers, tow dollies, compact boat haulers, and job-site flatbeds, this combination arrives fully mounted, seated, and aired up for direct installation.
The Kenda Loadstar K550 features a rugged bias-ply carcass that delivers superior sidewall rigidity to prevent trailer sway under shifting cargo. Formulated with an advanced low-rolling-resistance rubber compound, the K550 reduces drag to improve tow-vehicle fuel efficiency while resisting heat build-up. Paired with Kenda’s commercial-grade 13x4.5 Zero-Offset Steel MOD wheels, each rim undergoes automated roll-forming, submerged electro-deposit (e-coat) sealing, and a multi-step powder-coated finish for maximum corrosion resistance. Available in both 4-on-4.0" (1,660 lb wheel capacity) and 5-on-4.5" (1,725 lb wheel capacity) hub configurations.
PLEASE NOTE: Pre-mounted assembly arrives aired and ready to bolt on! Always verify your trailer hub's bolt pattern (4 on 4.0" vs. 5 on 4.5"), center pilot bore, and check cold tire inflation pressure before towing.
| PART # | TIRE SIZE | LOAD RANGE / PLY | DESIGN RIM | OVERALL DIA. | SECTION WIDTH | MAX LOAD (lbs.) | MAX PSI |
|---|---|---|---|---|---|---|---|
| 1ST76 | ST175/80D13 | Load Range C (6-Ply) | 13x4 | 24.0" | 6.6" | 1,360 lbs | 50 PSI |
| 1ST79 | ST185/80D13 | Load Range D (8-Ply) | 13x5 | 24.4" | 7.2" | 1,710 lbs | 65 PSI |
| SIZE | BOLT PATTERN | PILOT BORE | OFFSET | CAPACITY | WHITE | PINSTRIPE | GALVANIZED | SILVER | BLACK | CHROME |
|---|---|---|---|---|---|---|---|---|---|---|
| 13x4.5 | 4-4.0 (4 on 4.0") | 2.65" | 0 (Zero) | 1,660 lbs | 20250 | 20236 | 20246 | — | 20242 | — |
| 13x4.5 | 5-4.5 (5 on 4.5") | 3.19" | 0 (Zero) | 1,725 lbs | 20253 | 20252 | 20254 | 20244 | 20245 | 20249 |
